Closed-Cup Flash Point Tester for Oil Testing ISO 2719

Closed-Cup Flash Point Tester for Oil Testing ISO 2719
Closed-Cup Flash Point Tester for Oil Testing ISO 2719 Closed-Cup Flash Point Tester for Oil Testing ISO 2719 Closed-Cup Flash Point Tester for Oil Testing ISO 2719 Closed-Cup Flash Point Tester for Oil Testing ISO 2719 Closed-Cup Flash Point Tester for Oil Testing ISO 2719 Closed-Cup Flash Point Tester for Oil Testing ISO 2719 Closed-Cup Flash Point Tester for Oil Testing ISO 2719 Closed-Cup Flash Point Tester for Oil Testing ISO 2719 Closed-Cup Flash Point Tester for Oil Testing ISO 2719 Closed-Cup Flash Point Tester for Oil Testing ISO 2719 Closed-Cup Flash Point Tester for Oil Testing ISO 2719 Closed-Cup Flash Point Tester for Oil Testing ISO 2719
اطلاعات پایه
محل منبع: چین
نام تجاری: Advanced Instruments
گواهی: ASTM D93;ISO 2719
شماره مدل: PMCC-A
مقدار حداقل تعداد سفارش: 1 مجموعه
قیمت: US$1500-2500/set
جزئیات بسته بندی: کیس تخته سه لا
زمان تحویل: 15 روز
شرایط پرداخت: T/T ، L/C ، D/P
قابلیت ارائه: 100Set در ماه
بهترین قیمت اکنون تماس بگیرید
دقت: 0.1 ℃ ولتاژ تغذیه: AC (220±10%) ولتاژ 50 هرتز
نمایش: ال سی دی حالت گرمایشی: تنظیم توسط دستی
حالت احتراق: تفنگ جرقه زنی معیار آزمون: ASTM D93; ISO 2719
برجسته کردن:

ASTM D93 Flash Point Tester Manufacturer,Closed Cup Flash Point Testing Machine,Flash Point Analyzer

,

Closed Cup Flash Point Testing Machine

,

Flash Point Analyzer


Product Description

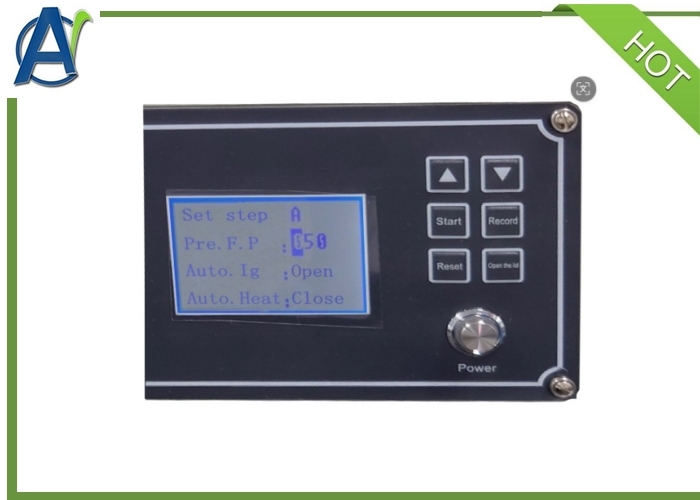

ISO 2719 Closed-Cup Flash Point Tester for Oil Testing is designed and manufactured as per standards GB/T 261-2008 Determination of Flash Point - Pensky-Martens closed cup method and ASTM D93 Standard Test Methods for Flash Point by Pensky-Martens Closed Cup Tester. It is used to make determination of the closed cup flash point of the petroleum products.This instrument adopts LCD screen to display. English man-machine interaction interface. It can preset the flash point, the procedure A, procedure B, procedure C, open or close of the automatic ignition and heating up and other parameters. Equipped with prompting menu, prompting input operation interface. This instrument is designed newly and easy to use. The test results are exact. It can be used widely in the petroleum industry, railway, aviation, electric power, universities and colleges and scientific research institute.
Closed-Cup Flash Point Tester for Oil Testing ISO 2719 0
Technical Parameter
Power supply
AC(220±10%)V, 50Hz
Heating device
(1)The furnace is silicon carbide material. Power is 600W heating wire.
(2) The heating power is adjustable from 0 W to 600W.
Rate of sample’s heating up
Procedure A :(5~6 )℃/min;
Procedure B:(1~1.5)℃/min;
Procedure C: (2.5~3.5)℃/min
Electric stirring device
(1)Stirring motor:(BYGH101stepping motor)
(2) Driving mode:flexible axle
(3) Stirring vane size:8mm×40mm
Stirring rate
Accord with the requirements of GB/T 261.
(1) 90~120 turns/min, suitable to test procedure A.
(2)(250±10)turns/min, suitable to test procedure B.
(3)90~120 turns/min, suitable to test procedure C
Standard oil cup
Accord with the requirements of GB/T 261.
(1) Inner diameter;50.7mm~50.8mm
(2) Depth;55.7mm~56.0mm
(3) Scribed line depth of capacity of oil sample:33.9mm~34.3mm
(4) Capacity of oil sample:about 70ml
Igniting device
Igniting source:gas(or other civilian fuels, the same below)
Temperature testing probe
Pt100
Ambient temperature
15°C~35°C,
Relative humidity
≤ 85%
Power consumption
≤ 650W
Dimension 340mm×330mm×380mm
Net weight 9kg
Full set and technical documents
Full set of instrument
Item
Name
Unit
Qty
Remarks
1
Main unit
Set
1
Including ignition unit, oil cup etc.
2
Temperature sensor
Piece
1
Has been installed in the instrument
3
Oil cup
Piece
1

4
Driving flexible shaft
Piece
1

5
latex tube φ3 250mm
Piece
3

Technical documents
(1) Operation Manual 1 piece
(2) Quality Certificate 1 piece
(3) Repair Guarantee 1 piece

Package Photos



Closed-Cup Flash Point Tester for Oil Testing ISO 2719 1



FAQ
1.What's the delivery time?
About 15 days.
2.What's your payment terms?
30% paid by T/T in advance,70% paid by by T/T before shipping.
3.What's your guarantee terms?
The warranty of all products is 1 year.During this period,we are responsible for all faults caused by us.And we can supply life-long technical support.
4.Can you supply training?
We can supply training in our factory and online training for free.If onsite installation and training are required,please pay for tickets,accommodation and salary USD280/Day for every person.
