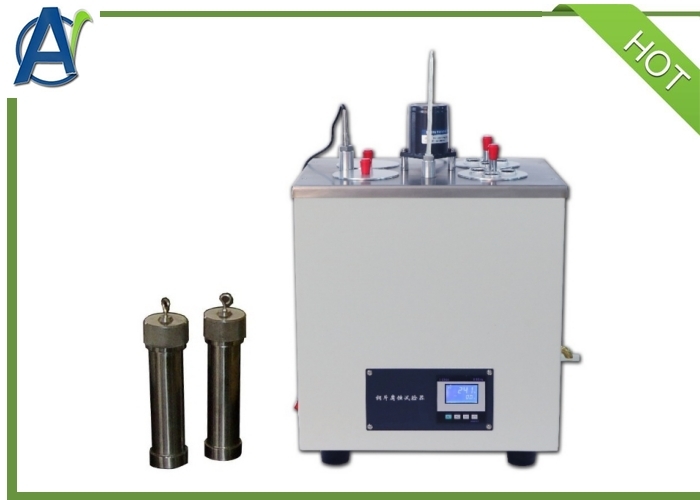

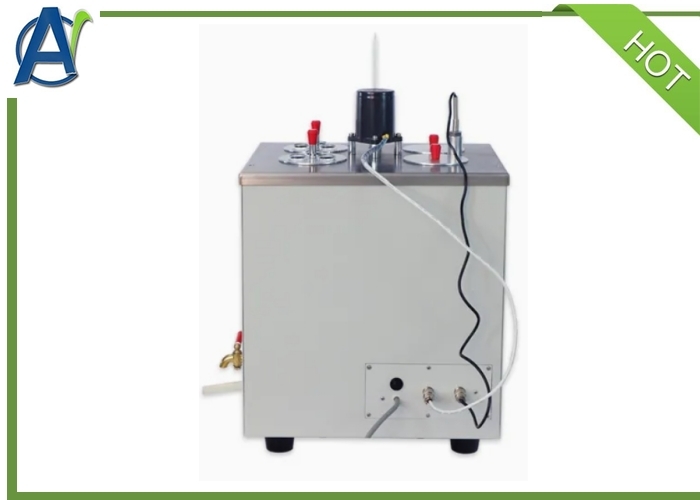

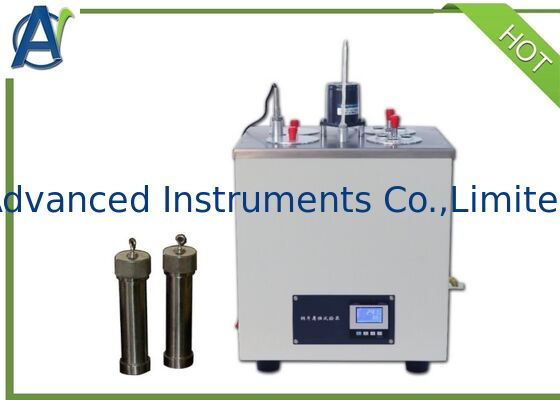

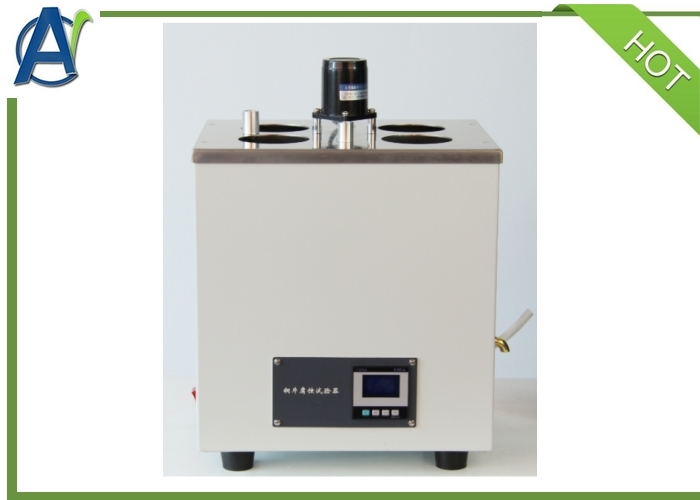

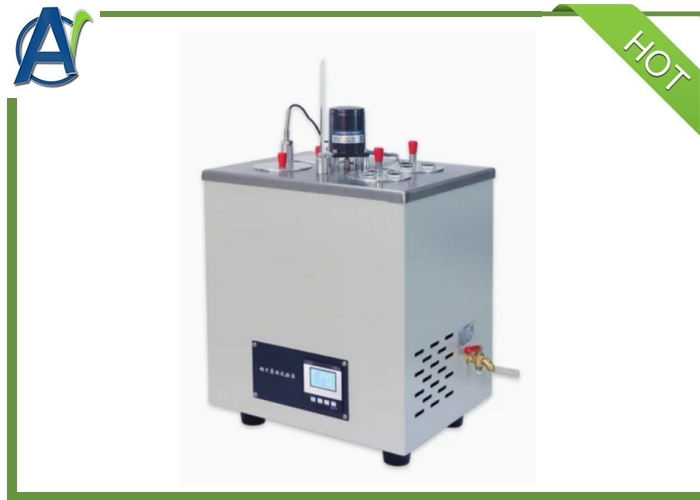

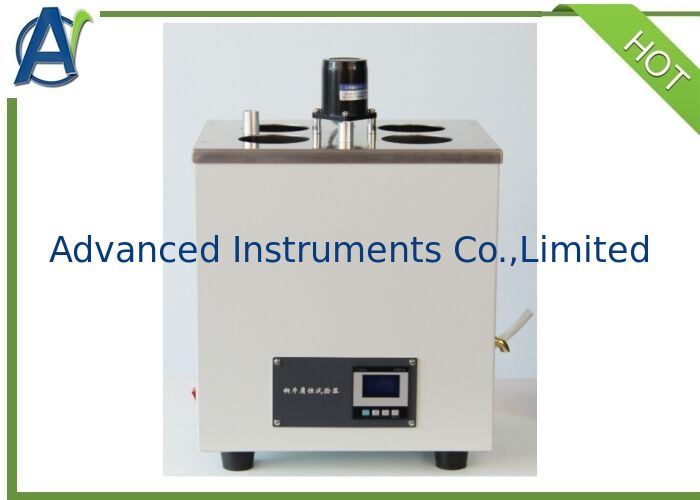

ASTM D130 Petroleum Products Copper Strip Corrosion Tester

Purpose and scope

The Petroleum Products Copper Strip Corrosion Tester is designed and made as per national standard of People's Republic of China GB/T 5096 Standard Test Method for Detection of Copper Corrosion from Petroleum Products by the Copper Strip Tarnish Test and ASTM D130 Standard Test Method for Detection of Copper Corrosion from Petroleum Products by Copper Strip Tarnish Test. It is suitable to determine the corrosiveness to copper of aviation gasoline, aviation turbine fuels, automotive gasoline, tractor fuels, washing solvent, kerosene distillate, lubricating oil, and other petroleum products. The instrument has functions of temperature controlling, automatic timing and alarming.

1.This Portable Petroleum Products Copper Strip Corrosion Test instrument has functions such as temperature control, automatic timing and reminder when it arrives. instrument has functions such as temperature control, automatic timing and reminder when it arrives.



2.This Copper strip corrosion apparatus has 4 sample test holes, each hole can place a test bomb or 3 test tube samples, and the test efficiency is high at the same time.



3.The high-precision LCD thermostat automatically controls the temperature, which is convenient and fast, and the temperature control accuracy reaches ±1°C.



4.The Copper strip corrosion Analyzer constant temperature bath, test bomb and test tube frame are made of stainless steel, which is corrosion and oxidation resistance.



5. Standard color plate is not suitable for LPG and aviation fuel oil.







The Technical Specifications and Parameters



Operating Power supply	AC220V±10%, 50Hz
The whole power consumption	≤1800W
Temperature sensor	Pt100
Temperature control range	Room temperature ~100°C can be set arbitrarily
Temperature control accuracy	±1℃
Time control range	1min~24h Any setting
Sample hole	4
Measure the number of samples	4~12
Applicable environment	Temperature: 15°C~35°C, Relative Humidity: ≤85%
Dimensions	440mm×330mm×560mm
Net Weight	16kg
