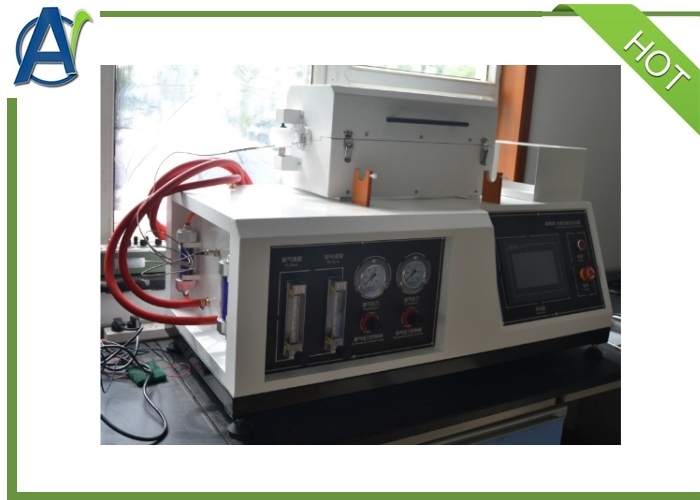

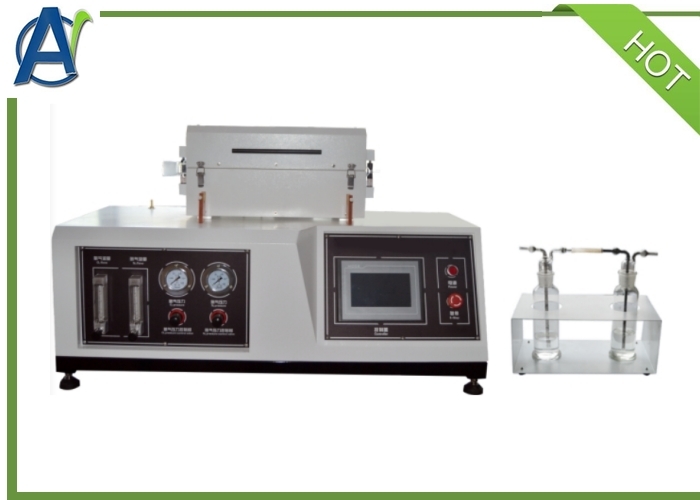

IEC 60811-4-1:2004 and ISO 6964 Compliant Automatic Carbon Black Content Tester for Polyethylene Combustion Testing

Carbon black content test device is designed and produced in line with GB/T2951.41—2008 <Common test methods for insulating and sheathing materials of electric and optical cables--Part 41: Methods specific to polyethylene and polypropylene compounds - Carbon black and/or mineral filler content measurement in polyethylene by direct combustion>, used for determination of carbon black content of polyethylene, polypropylene, polybutylene plastics.

• ISO 6964;
• IEC 60811-4-1:2004
• ASTM D1603

1. Quartz tube: inner diameter 30mm, total length 600mm;
2. Heating furnace: room temperature~600℃, 500mm length;
3. Temperature sensor: K type, room temperature~1300℃;
4. Bottle washing: 500ml, 2 pcs/set;
5. Burning boat: Type 77, 100 pcs/set;
6. Air source: nitrogen (oxygen content <0.5%), oxygen (customer provided);
7. Flow meter: 0.3~3L/min.

1. Overall Dimensions: 600mm*450mm*770mm
2. Power supply: AC 220V, 50/60Hz, 16A
