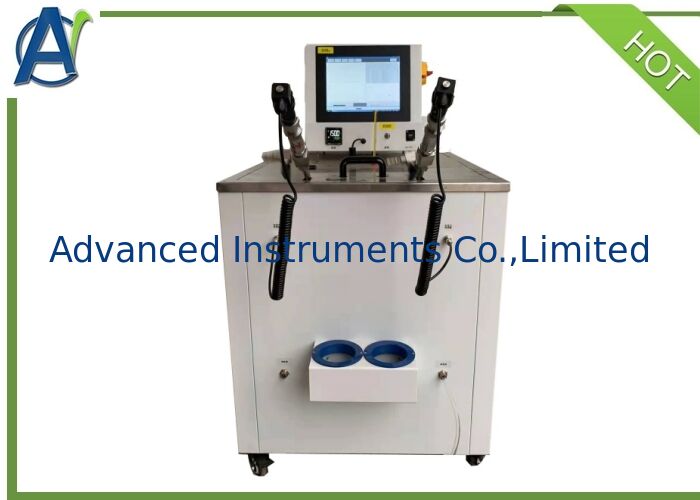

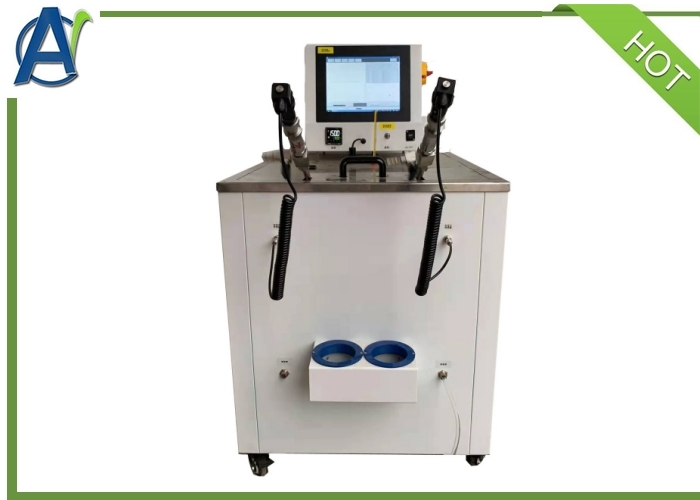

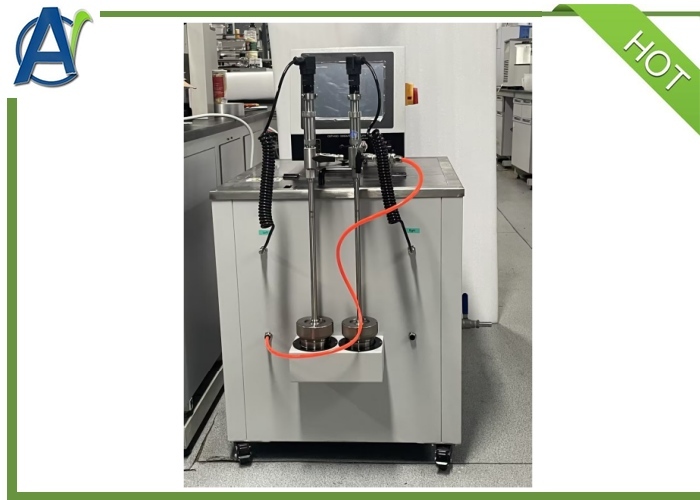

ASTM D2272 and ASTM D2112 Automatic Oxidation Stability Tester for Lubricating Oils (RPVOT / RBOT)

اطلاعات پایه

محل منبع:	چین
نام تجاری:	Advanced Instruments
گواهی:	ISO9001
شماره مدل:	OST-H3O

مقدار حداقل تعداد سفارش:	1 مجموعه
قیمت:	US$10,000-15,000/set
جزئیات بسته بندی:	کیس تخته سه لا
زمان تحویل:	20 روز
شرایط پرداخت:	T/T ، L/C ، D/P
قابلیت ارائه:	50 ست در ماه

بهترین قیمت اکنون تماس بگیرید

استاندارد تست:	ASTM D2272، ASTM D2112	گارانتی:	1سال کامل
علامت تجاری:	ابزارهای پیشرفته	منبع تغذیه:	AC220V 50Hz
سرویس OEM:	موجود است	توان کل:	1500 وات
ساختار ابزار:	نوع عمودی، عملیات بمب دوگانه	دقت کنترل دما:	0.1 درجه سانتیگراد
محدوده کنترل دما برای حمام روغن:	دمای اتاق ~ 200 ℃	نمایش:	نمایشگر LCD با صفحه نمایش بزرگ
دقت تشخیص فشار:	± 2‰	سرعت چرخش موتور:	100±3 دور در دقیقه
وزن خالص:	46 کیلوگرم
برجسته کردن:	ASTM D2272 and ASTM D2112 ,Automatic Oxidation Stability Tester,Oxidation Stability Analyzer , Automatic Oxidation Stability Tester , Oxidation Stability Analyzer

General Introduction

This Automatic Oxidation Stability Tester is professionally designed to determine the oxidation stability of lubricating oils, turbine oils and insulating oils in strict accordance with ASTM D2272 and ASTM D2112 standards. Adopting the rotating pressure vessel method (RPVOT / RBOT), it features fully automatic operation, high precision and reliable test data. Equipped with intelligent control system, it is widely used in petroleum refineries, oil inspection laboratories and quality control departments to evaluate oil oxidation resistance and service life.

Features

Adopts advanced foreign technology and is controlled by a microcomputer. It automatically performs detection and calculation, requiring no manual supervision during the whole test process with a high degree of automation.
Supports real-time communication with a host computer, featuring simple and reliable connection.
Allows calibration of temperature and pressure at any time to ensure their accuracy.
Automatically records test data and results during the testing process.
Enables querying and comparison of historical records, and printing of pressure change curves.
Automatically identifies the pressure inflection point and terminates the test automatically.
Equipped with an imported rotating unit, providing stable rotating speed and low noise.
Allows simultaneous testing of two groups of oil samples.

The Technical Specifications and Parameters

Power supply	AC(220±10%)V, 50Hz
Total Power	1500w
Applicable Standards	SH/T 0193, ASTM D2112, ASTM D2272

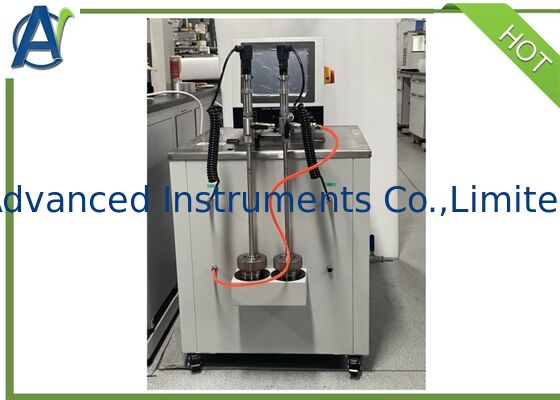

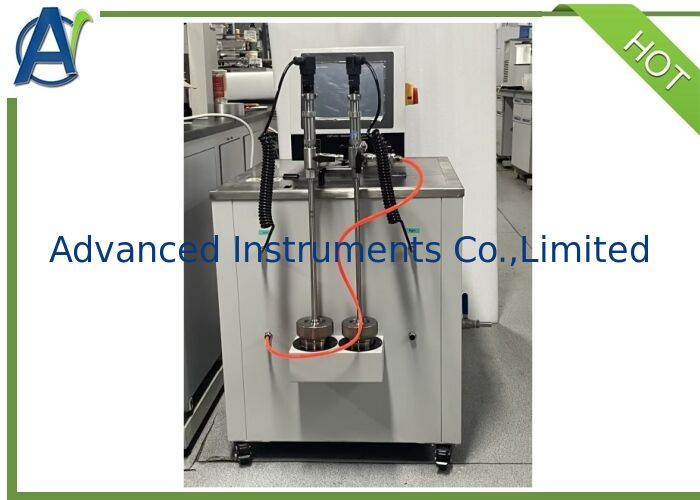

Instrument Structure	Vertical type, dual-bomb operation
Temperature control accuracy	±0.1℃
Temperature control	Adjustable from room temperature to 200℃

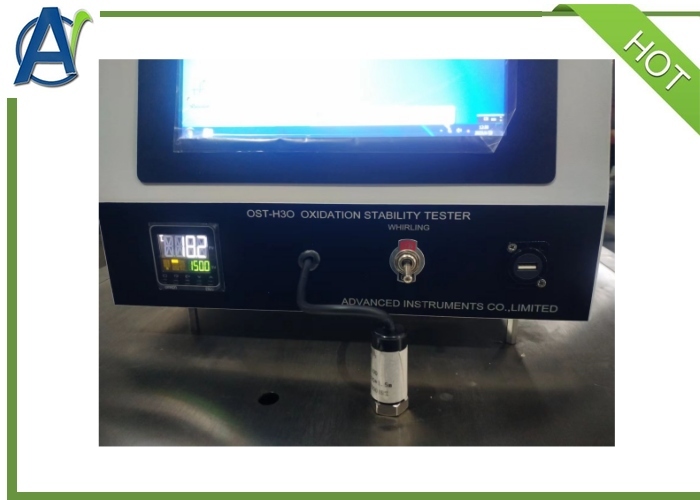

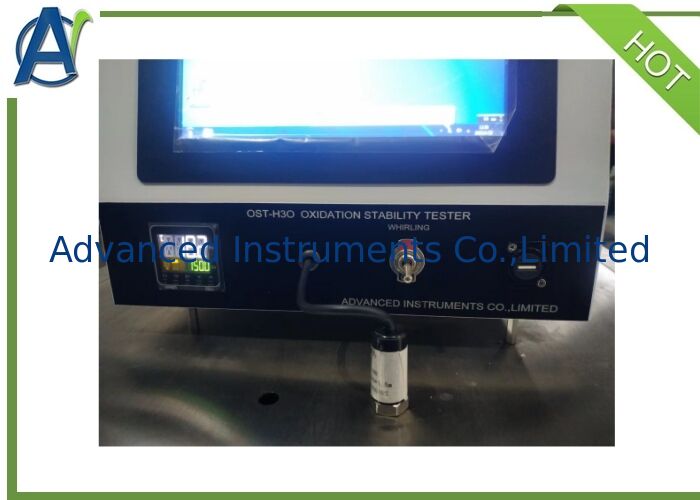

Display	Large-screen LCD display
Display Contents	Temperature curve of the bath liquid; Pressure curve of the sample;
Pressure Detection Accuracy	±2‰
Motor Rotating Speed	100±3 r/min
Dimension	700mm×600mm×1040mm
Net weight	46KG

1.What's the delivery time?

About 20days.

2.What's your payment terms?

30% paid by T/T in advance,70% paid by by T/T before shipping.

3.What's your guarantee terms?

The warranty of all products is 1 year.During this period,we are responsible for all faults caused by us.And we can supply life-long technical support.

4.Can you supply training?

We can supply training in our factory and online training for free.If onsite installation and training are required,please pay for tickets,accommodation and salary USD280/Day for every person.
