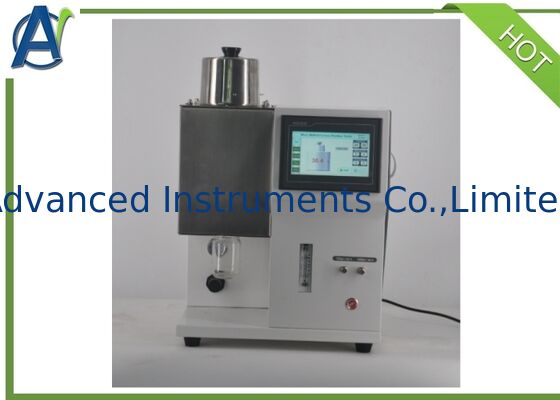

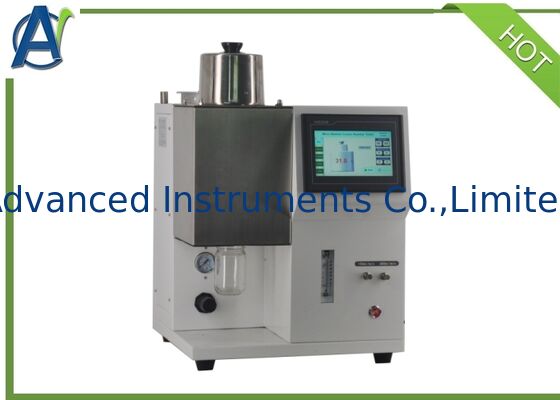

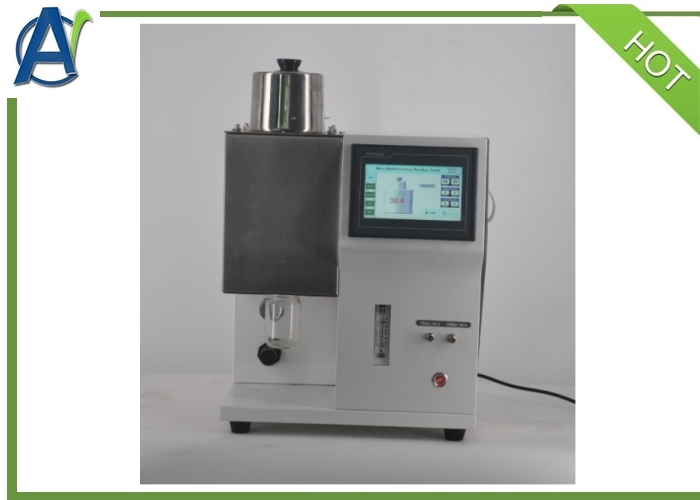

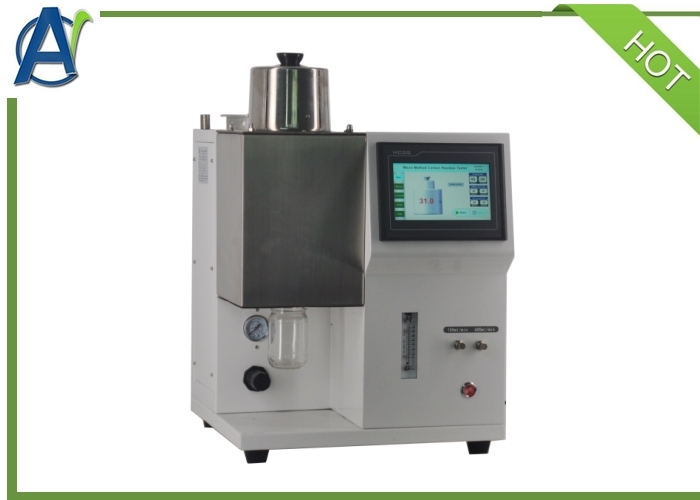

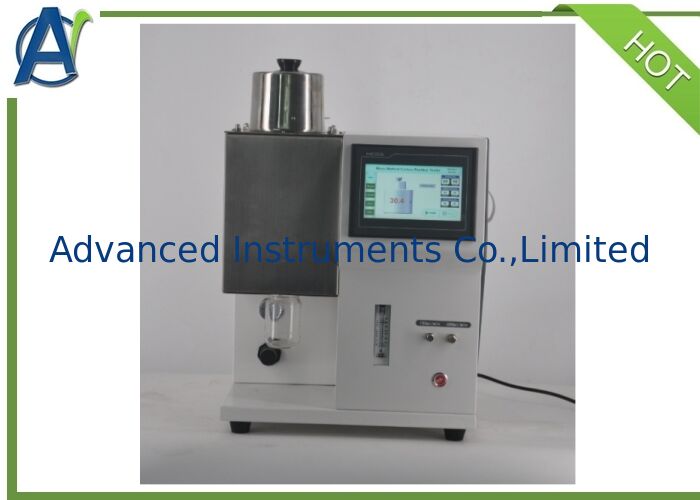

ASTM D4530 and ISO 10370 Automatic Micro Carbon Residue Tester (Carbon Residue Test Apparatus, Micro Method)

This Micro Carbon Residue Detection Equipment is designed and made as per GB/T17144-1997 Standard Test Method for Carbon Residue of Petroleum Products-Micromethod. It is suitable to determine the amount of carbon residue of petroleum products.

1. 1. 5-inch TFT color LCD display with screen resolution of 800×480;
2. 2. Chinese-language operating interface with touchscreen control for easy and efficient operation;
3. 3. Automatic control of temperature rise and gas flow, with real-time display of test progress;
4. 4. Adopts an embedded operating system for stable and reliable performance;
5. 5. High-temperature safety protection;
6. 6. Editable input of sample tube and sample mass;
7. 7. Automatic calculation of carbon residue value;
8. 8. Stores up to 100 sets of historical data for easy query;
9. 9. Historical data can be queried by date;
10. 10. Coking chamber inlet orifice diameter: 1mm (12 in total).

1.  Applicable Standards: GB/T 17144, ASTM D4530, ISO 10370, DIN 51551
2.  Temperature Control Accuracy: 520±2℃
3. Working Positions: 12 samples
4. Heating Mode: Heating rod heating, easy for maintenance
5. Connection Mode: Imported stainless steel quick connector, leak-proof
6.  Pressure Range: 0 kPa (0 kg/cm²) ~392 kPa (4 kg/cm²)
7.  Flow Range: 100 ml ~1000 ml/min

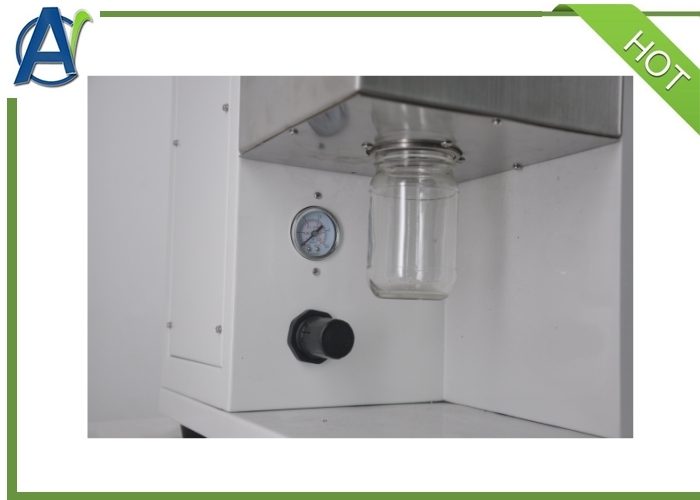

8. Waste Liquid Collection Bottle: 200 ml glass bottle with threaded interface
9. Power Supply: AC 220 V, 50 Hz
10. Total Power: 2000 W
11. Instrument Dimensions: 550×500×590 mm
12. Net Weight: 35 KG
