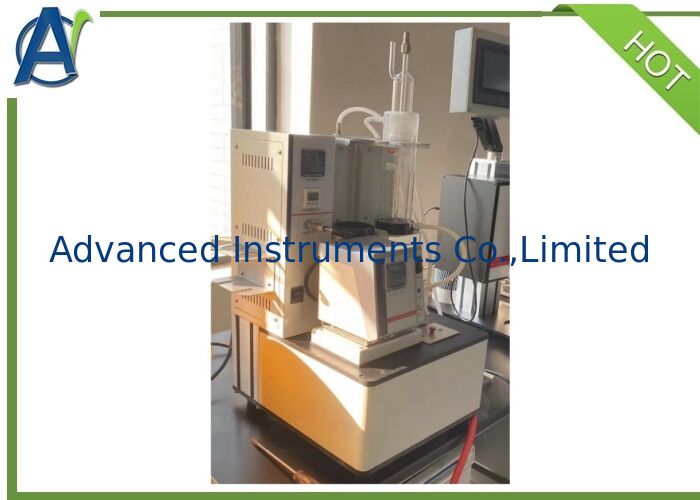

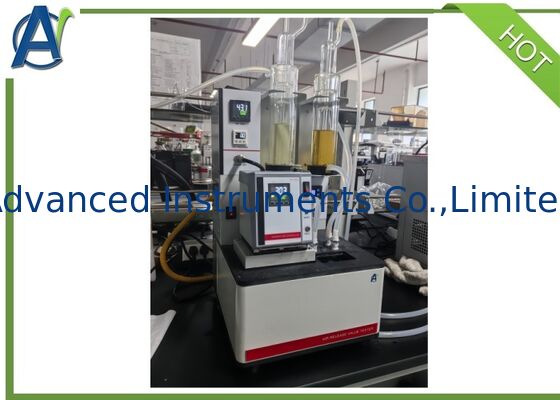

ASTM D3427 SH/T0308 Automatic Lubricant Air Release Value Tester

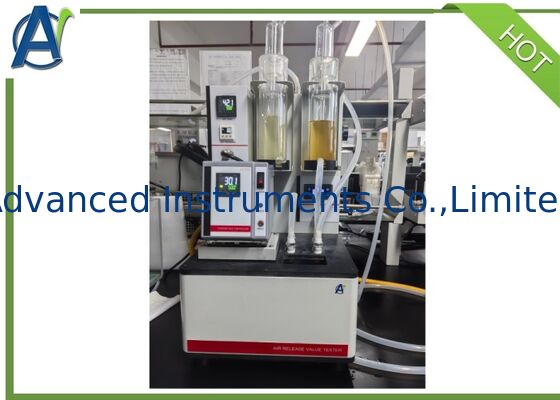

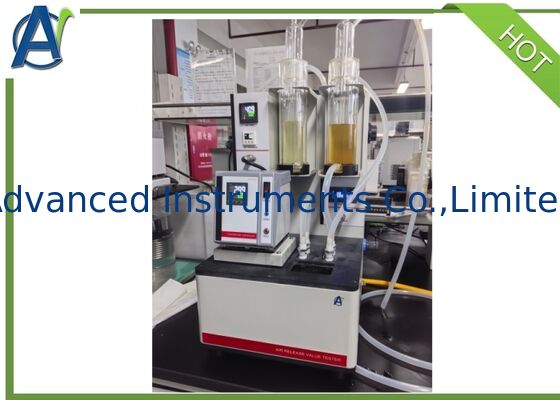

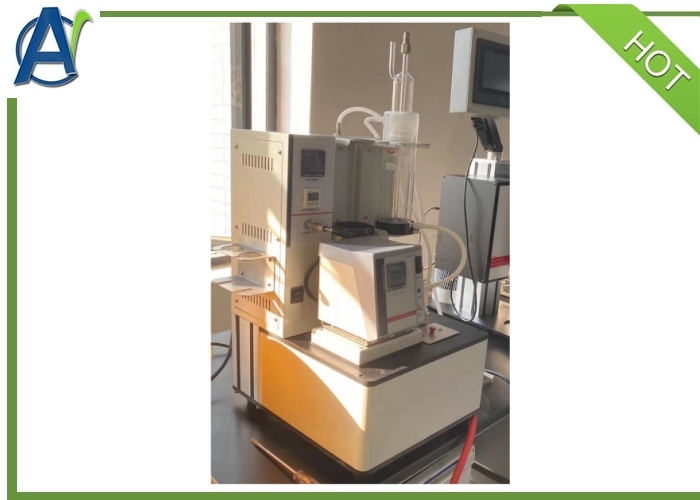

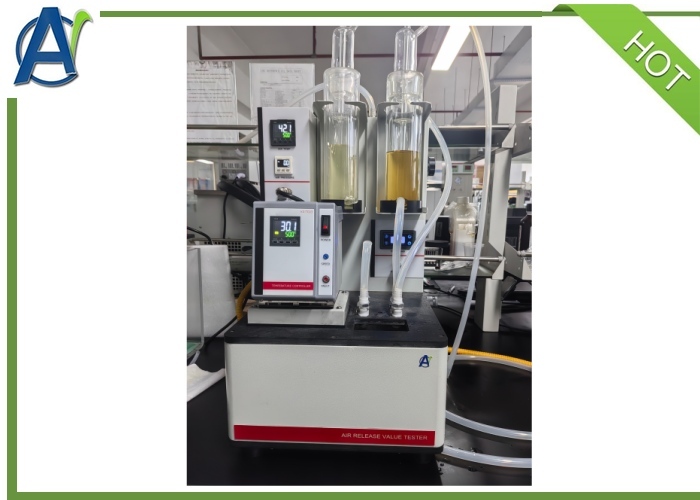

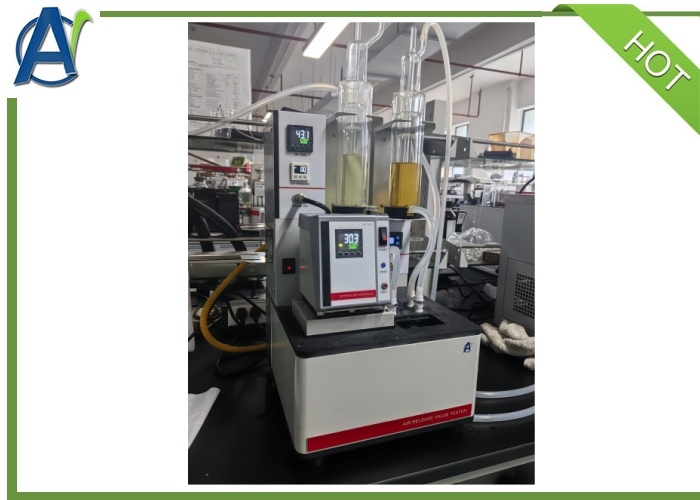

ASTM D3427 SH/T0308 Automatic Lubricant Air Release Value Tester
ASTM D3427 SH/T0308 Automatic Lubricant Air Release Value Tester ASTM D3427 SH/T0308 Automatic Lubricant Air Release Value Tester ASTM D3427 SH/T0308 Automatic Lubricant Air Release Value Tester ASTM D3427 SH/T0308 Automatic Lubricant Air Release Value Tester ASTM D3427 SH/T0308 Automatic Lubricant Air Release Value Tester ASTM D3427 SH/T0308 Automatic Lubricant Air Release Value Tester ASTM D3427 SH/T0308 Automatic Lubricant Air Release Value Tester ASTM D3427 SH/T0308 Automatic Lubricant Air Release Value Tester ASTM D3427 SH/T0308 Automatic Lubricant Air Release Value Tester ASTM D3427 SH/T0308 Automatic Lubricant Air Release Value Tester ASTM D3427 SH/T0308 Automatic Lubricant Air Release Value Tester ASTM D3427 SH/T0308 Automatic Lubricant Air Release Value Tester
اطلاعات پایه
محل منبع: چین
نام تجاری: AI
گواهی: ISO9001
شماره مدل: ARV-II
مقدار حداقل تعداد سفارش: 1 مجموعه
قیمت: USD$3,000~5,000
جزئیات بسته بندی: مورد تخته سه لا
زمان تحویل: 30 روز
شرایط پرداخت: T/T، وسترن یونیون، L/C
قابلیت ارائه: 20 ست در ماه
بهترین قیمت اکنون تماس بگیرید
گارانتی: 1سال کامل برنامه: آزمایش چربی
زبان: انگلیسی سرویس OEM: موجود است
محدوده کنترل دما: محیط ~80±1℃ تابع: آزمایش توانایی روغن ها برای جداسازی هوای داخل شده
استاندارد تست: ASTM D3427, SH/T0308 منبع تغذیه: AC220±10% 50±5% هرتز
نمایشگر فشار: دیجیتال فشار کاری: 19.6 کیلوپاسکال
کنترل فشار: شیر تنظیم فشار دقیق عملیات: دستی
نمایش: رهبری کرد قابل حمل: غیر قابل حمل
تایپ کنید: متر ارزش آزادسازی هوا حالت زمان بندی: تایمر دیجیتال
حالت گرمایش: نوار برقی
برجسته کردن:

ASTM D3427 lubricant air release tester

,

SH/T0308 automatic oil tester

,

lubricant air release value equipment

I. ASTM D3427 Lubricating Grease Air Release Properties Tester

The Air Release Properties Apparatus is suitable to test ability of oils to separate entrained air,such as turbine oil, hydraulic oil etc.
Heat the oil sample to temperature 25,50 or 75ºC,blow compressed air through the test oil,make make it stirred strongly.Air becomes small bubbles in the air,that is entrained air.After the air is stopped,the time required for the air entrained in the oil to reduce in volume to 0.2% is recorded as the air release time.

II. Main Features

1. Micro-computer processing and PID controlling,digitally display set and real temperature,accuracy 1ºC,Pt100 RTD temperature probe.
2. Working temperature range:ambient~80ºC,accuracy can adjust to ±0.1ºC
3. High precise air regulating valve,control pressure to 19.6 Kpa accurately.
4. Stainless steel constant water bath is corrosion resistant.
5. The Air Release Properties Tester uses LED display working pressure.
6. Each tap can be connected easily.
7. Timer can display time,manual timing is not needed.
8. The case is treated with Electrostatic spraying and high temperature baking,beautiful and elegant.
9. Independent air filtering and Voltage stabilizer,can reduce water and oil in air.

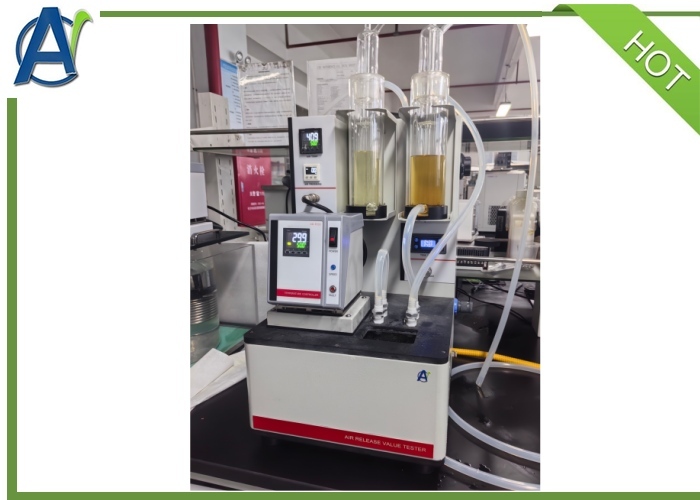

ASTM D3427 SH/T0308 Automatic Lubricant Air Release Value Tester 0

III. Specifications:

1
Applicable standard
SH/T0308, ASTM D3427, DIN51585, NFT60151 ,IP135
2
Power supply
AC220±10% 50Hz±5%
3
Heating mode
Electric bar
4
Temperature controlling range
ambient~80±1ºC,if using silicon oil,it can reach higher temperature.
5
Working pressure
19.6Kpa
6
Pressure controlling
Precise pressure regulating valve
7
Timing mode
Digital timer
8
Pressure display
Digital

FAQ

  1. What's the delivery time?

    About 30days.

  2. What's your payment terms?

    30% paid by T/T in advance,70% paid by by T/T before shipping.

  3. What's your guarantee terms?

    The warranty of all products is 1 year.During this period,we are responsible for all faults caused by us.And we can supply life-long technical support.

  4. Can you supply training?

    We can supply training in our factory and online training for free.If onsite installation and training are required,please pay for tickets,accommodation and salary USD280/Day for every person.
