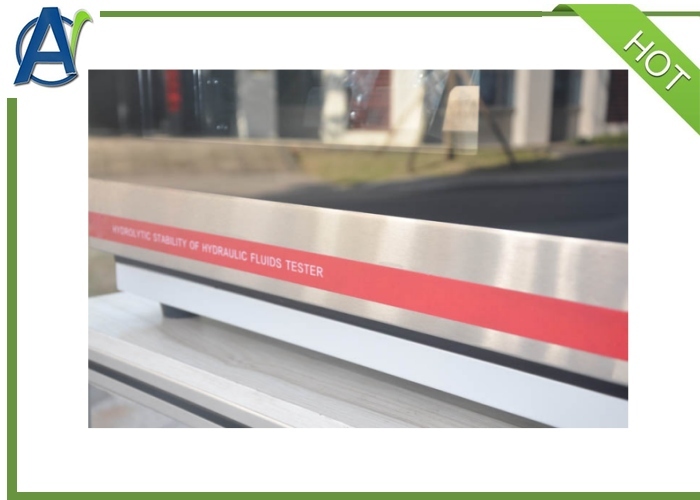

ASTM D2619 Hydrolytic Stability Testing Instrument for Hydraulic Fluids (Beverage Bottle Method)

اطلاعات پایه

محل منبع:	چین
نام تجاری:	AI
گواهی:	ISO9001
شماره مدل:	AIC-2619

مقدار حداقل تعداد سفارش:	1 مجموعه
قیمت:	USD$4,000~5,000
جزئیات بسته بندی:	مورد تخته سه لا
زمان تحویل:	30 روز
شرایط پرداخت:	T/T، وسترن یونیون، L/C
قابلیت ارائه:	20 ست در ماه

بهترین قیمت اکنون تماس بگیرید

استاندارد تست:	SH/T0301, ASTM D2619	زبان:	انگلیسی
منبع تغذیه:	AC220V، 50HZ	موقعیت کاری:	4 واحد
دقت کنترل دما:	± 0.5 ℃	کنترل کننده دما:	امرون
توان کل:	1200 وات	نمایش:	دیجیتال
محدوده کنترل دما:	Rt~93℃	بعد:	600mm600mm650mm
وزن:	45 کیلوگرم	سرعت چرخش:	5 دور در دقیقه
گارانتی:	1سال کامل	روش تست:	روش بطری نوشیدنی
برجسته کردن:	ASTM D2619 hydraulic fluid tester , hydrolytic stability testing instrument , beverage bottle method oil tester

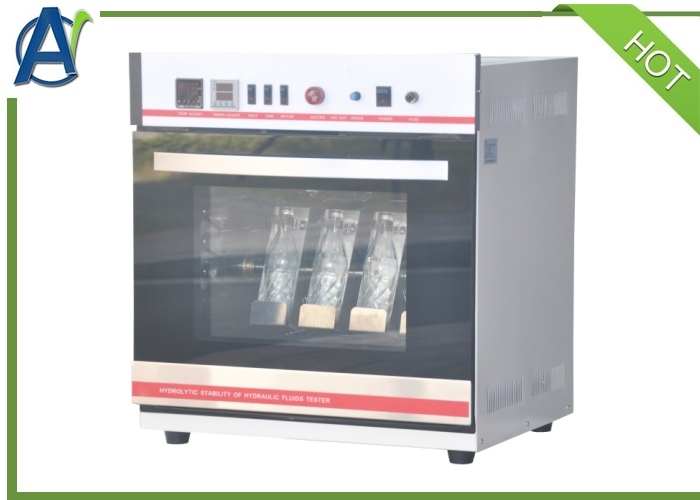

I. Hydraulic Oil Hydrolysis Stability Tester ASTM D2619

This Hydrolytic Stability Tester is suitable for testing hydrolytic stability of mineral oil and synthetic hydraulic fluid, as well as evaluating water-based or water emulsified hydraulic fluid.

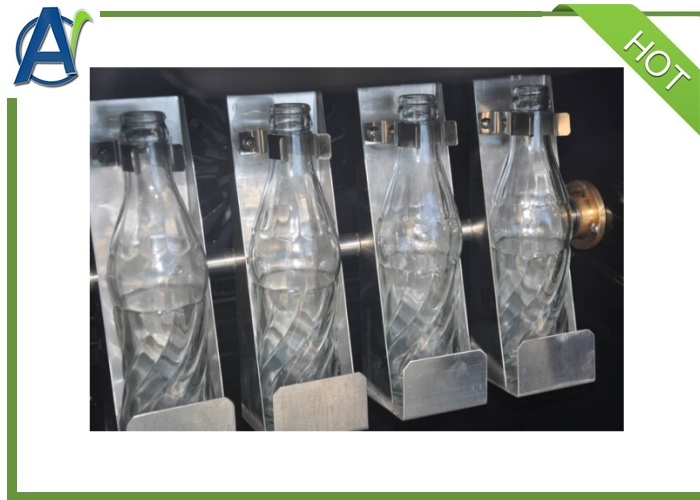

During the test, the sample, water and copper strip instrument shall be sealed in the pressure resistant glass, and then placed in the oil hydrolytic stability test box at a certain temperature. After rotating for 48 hours in a head to tail manner, the oil-water mixture shall be filtered to determine the insoluble matter, and then the oil and water shall be separated to measure the viscosity, acid value, total acidity of the water layer and the change of the copper strip quality respectively.

II.Main technical characteristics

1.The Hydrolytic Stability Tester adopts Desktop structure, temperature up to 100 ºC;

2.The air guide cooling system automatically starts to dissipate heat when the surface temperature of the instrument is too high;
3.Enamel liner is corrosion-resistant and easy to clean;
4.The box is equipped with fan circulation and lighting devices;
5.The Hydrolytic Stability Tester uses Imported Omron PID temperature controller, digital display temperature, accuracy 0.1 ºC
6.Over temperature safety protection;
7.4 groups of experiments can be conducted at the same time;
8.Novel V-shaped door opening mode, full transparent high temperature resistant glass door.

III. Main technical parameters and index

1	Applicable standard	SH/T0301, ASTM D2619
2	Heating method	Stainless steel electrical heating tube
3	Temperature control range	RT~~93ºC
4	Temperature control accuracy	±0.5ºC
5	Temperature control method	imported digital temperature controller
6	Working position	4 units
7	Timing method	digital timer
8	Rotation speed	5RPM
9	Operation prompt	Sound
10	Total power	1200W
11	Dimension	600600650mm
12	Power supply	AC220V,50Hz
13	Weight	45KG

FAQ

What's the delivery time?

About 30days.
What's your payment terms?

30% paid by T/T in advance,70% paid by by T/T before shipping.
What's your guarantee terms?

The warranty of all products is 1 year.During this period,we are responsible for all faults caused by us.And we can supply life-long technical support.
Can you supply training?

We can supply training in our factory and online training for free.If onsite installation and training are required,please pay for tickets,accommodation and salary USD280/Day for every person.
